Monitor Audio C 280 IDC

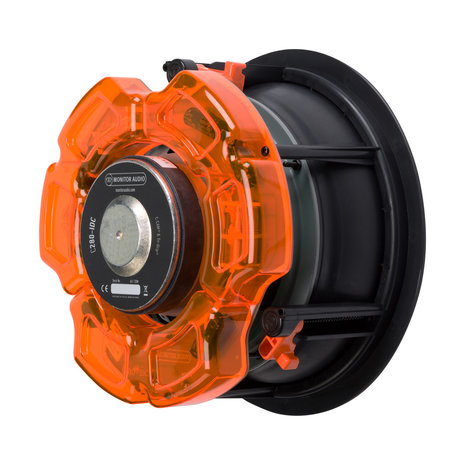

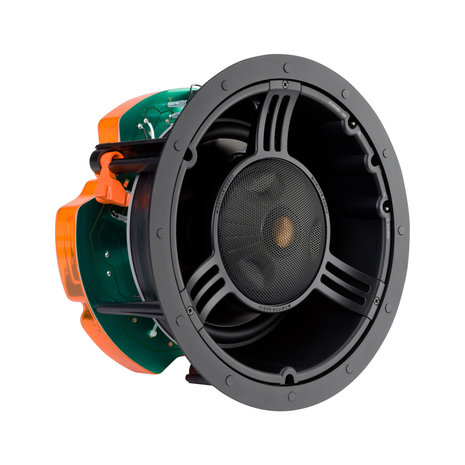

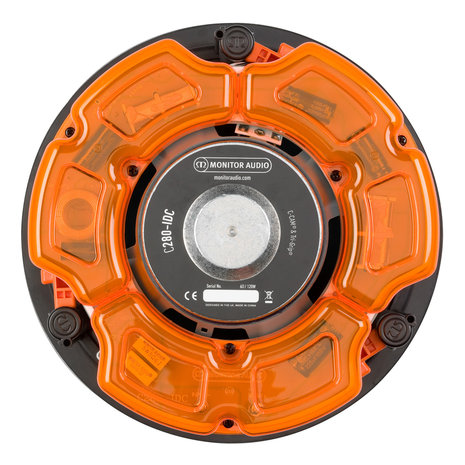

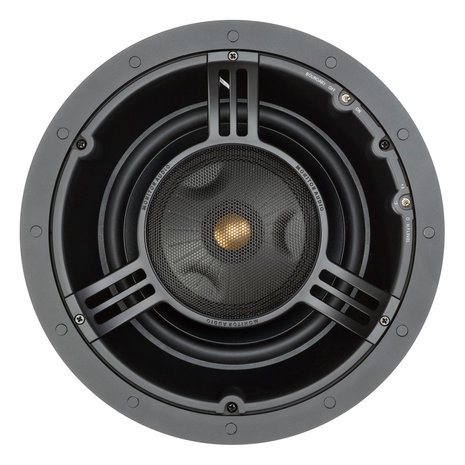

Features an 8-inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.

Frequency Response
50 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
90 dB

Maximum SPL
111.6 dBA

Power Handling (RMS)
120 W

Recommended Amplifier Requirements
30 – 120 W

Drive Unit Complement
8” C-CAM cone bass driver, pivoting IDC module housing:
4” C-CAM RST inverted mid range driver
1” C-CAM Gold Dome tweeter

Adjustment Controls
HF Level Switch
(+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)
285 mm (11 1/4")

Overall Depth (Including Grille)
160 mm (6 5/16")

Mounting Depth
156 mm (6 1/8")

Cut-Out Hole Diameter
247 mm (9 3/4")

Fixing Type
3 position Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
3.42 kg (7 lb 8 oz)

Pre-Construction Bracket
CB8 Pre-Construction Bracket (Green)

Back Box
CMBOX-R
