Between 2" stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.
The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3" mid-bass units achieve the bass output of a 6 1/2" driver, all from a super-stealthy flush-fitted profile.
In keeping with Monitor Audio’s renowned design rigour, the crossover comprises high quality film capacitors and low loss inductors - selected for signal integrity - ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress.
Technology
-
Super-slim mounting depth 50mm (2”) designed to fit within 2” stud walls or where space is restricted
-

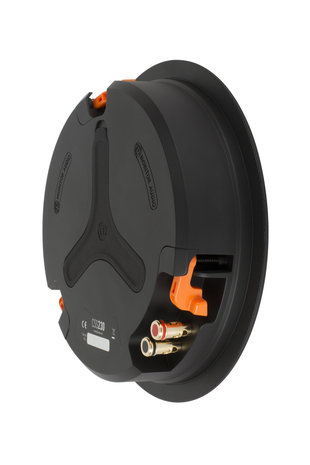

Hybrid CP ‘Controlled Performance’ style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)
-

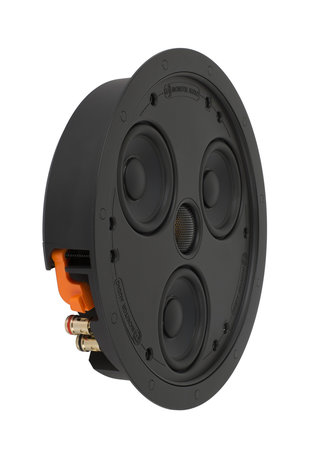

Driver configuration of three 3” C-CAM bass/mid-range drivers in a radial array around a 19mm C-CAM gold dome tweeter (fixed position) and high quality crossover design offers Monitor Audio’s award-winning signature sound quality
-
Gold plated sprung push terminals are reliable and easy to connect
-
Magnetically attached ‘Trim-less’ round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor
-
Patented Tri-Grip dog leg fixings – Reliable, robust and quick to install
- Existing pre-construction bracket for easier system design and planning
Specifications:
Frequency Response (-6 dB)
100 Hz – 30 KHz sealed ‘CP’ (85 Hz – 30 KHz –open back)
Nominal Impedance
8 ohms
Sensitivity (1W@1M)
86 dB
Maximum SPL
103.8 dBA
Power Handling (RMS)
40 Watts – Full range (60 watts with crossover set to 100Hz @ 12dB/Octave)
Recommended Amplifier Requirements
10 - 60 W
Drive Unit Complement
3 x 3” C-CAM cone bass-mid drivers
1 x 19 mm (3/4”) C-CAM Gold Dome tweeter
Crossover Recommendation
100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
Connection
Gold Plated Sprung push terminals – for bare wire connection up to 4mm(2)
Overall Diameter (Including Grille)
250 mm (9 13/16”)
Overall Depth (Including Grille)
54 mm (2 1/8”)
Cut-Out Hole Diameter
210 mm (8 5/16”)
Mounting Depth
50 mm (2”)
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
ABS (UL94 rated, RoHS2 Compliant) – Painted steel grille
Pre-Construction Bracket
CB6 Pre-Construction Bracket (Purple)
