Each little bass-engine is generously specified with custom installation in mind, providing versatile input and control options including RS232 and a dedicated ‘SubConnect’ PC applet via a wired USB interface.

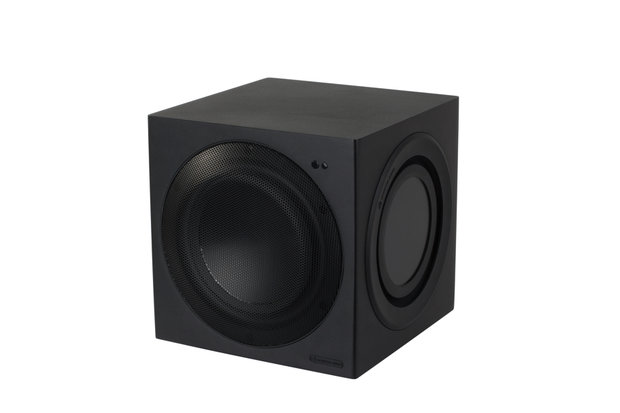

The compact rigid 18 mm MDF cubic cabinets with regular 25.5 cm dimensions incorporate no fewer than three robust, similarly sized 8” C-CAM drivers. Each system array comprises an active high-excursion drive unit powered and trimmed by potent DSP-tuned amplification, together with twin side-mounted ABRs (Auxiliary Bass Radiators).
- Ultra-compact ‘cube’ shape designs
- Twin side-mounted ABRs for increased output and reduced distortion. Higher output than a sealed box and better control and zero air noise compared to a ported box
- High excursion woofers featuring signature C-CAM cone technology
- High-power Class-D amplifier delivering 400 watts
- DSP processing –all functions performed in the digital domain for precise control
- RS-232 for integration with system controllers
- SubConnect’ PC Applet for full feature adjustment, installer set-up and firmware update using USB
- LFE Balanced XLR and unbalanced RCA Inputs
- Stereo RCA line level inputs
- Phase switch (0-180 degrees)
- 12 V trigger and auto signal sensing with timer control
- 4 x pre-set equalisation optimised for music, movie, flat and impact with customisation through SubConnect Applet
- Robust metal mesh grille on front woofer
- Rigid MDF cabinet construction with durable vinyl finish
Specifications:
System Format
Active sub-woofer system – twin ABR. 18 mm MDF cabinet (CARB2 approved)
Lower Frequency Limit
35 Hz (-6 dB)
Amplifier Output
350 W RMS @ < 1% THD+N
Maximum SPL
105.8 dBA
Amplifier Classification
Class D amplifier with Switch mode power supply (SMPSU)

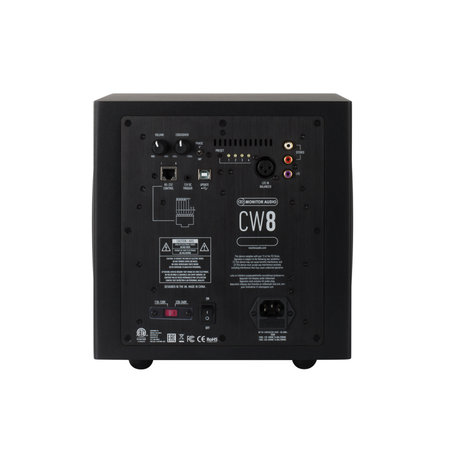

Inputs
Stereo RCA LFE (RCA) LFE Balanced (XLR)
EQ
Flat/ Music/ Movie/ Impact
Phase Control
0 & 180 degrees
Auto Sensing
LFE Input <2mV Auto wireless audio input signal detection
Auto Standby
After approximately 15 minutes if no signal sensed Wireless audio source turned off
Drive Unit Complement
1 x 8" (200 mm) C-CAM long throw driver, 2 x 8" (200 mm) ABR
Input Impedance
> 20 ohms
Mains Input Voltage
110 - 120 Vac / 220 - 240 Vac 50/60Hz (Manual Switch selection)
Dimensions (Including Feet (H x W x D))
270 x 260 x 276 mm (105/8 x 101/4 x 107/8")
Trigger Input
5 - 12 V via 3.5mm mono mini-jack socket
Power Consumption
Standby: < 0.5 W (ErP approved) Typical Idle: < 10 W Max Rated: 400 W
