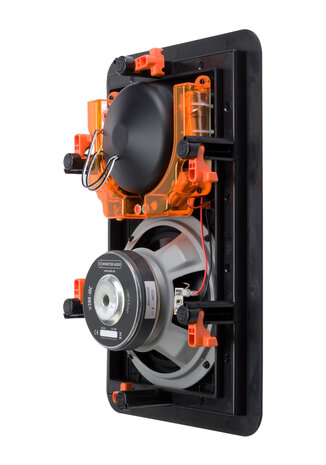

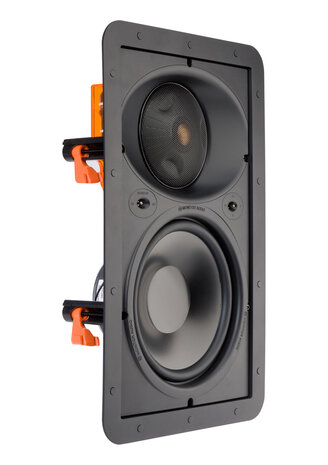

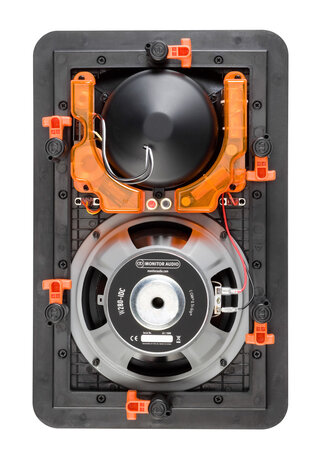

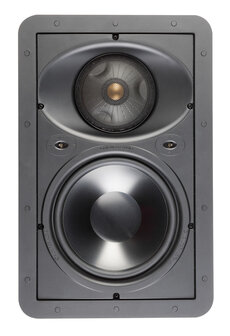

Features an 8-inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.
True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation.
Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.
Frequency Response
45 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
150 W
Recommended Amplifier Requirements
30 – 120 W
Drive Unit Complement
8” C-CAM cone bass driver, pivoting IDC module housing:
4” C-CAM RST inverted mid range driver
1” C-CAM Gold Dome tweeter
Adjustment Controls
HF Level Switch
(+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
441 mm x 288 mm (17 3/8" x 11 5/16")
Overall Depth (Including Grille)
97.5 mm (3 13/16")
Mounting Depth
93 mm (3 11/16")
Cut-Out Hole Diameter
387 mm x 234 mm (15 1/4" x 9 3/16")
Fixing Type
6 position Tri-Grip dog fixings
Construction Material
WB8 (Green)
Weight
3.6 kg (7 lb 14 oz)
Pre-Construction Bracket
WB8 Pre-Construction Bracket (Green)
Back Box
WCBOX-L
