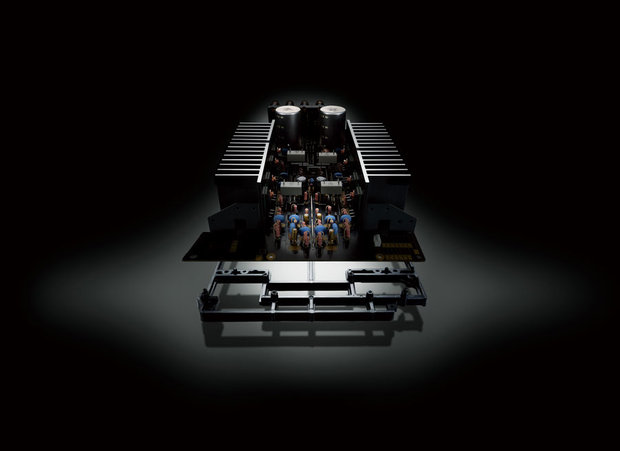

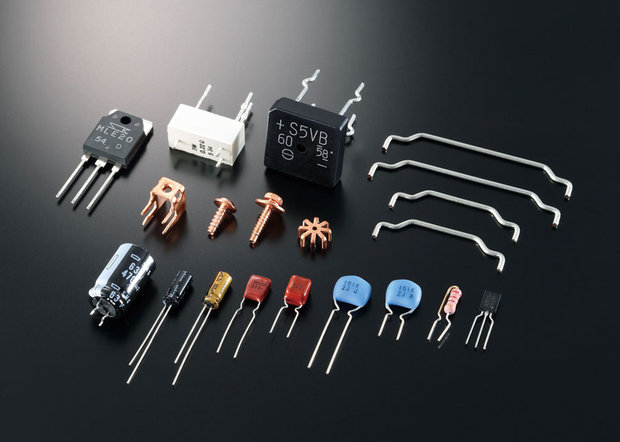

• ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
• - I/O (input to output) Direct Symmetrical Design
• - ART (Anti-Resolution and Tough) Base
• - Custom-made power transformer / 12,000uF block capacitors / Aluminum-extruded heat sinks
• 120W x 2 (max), 85W x 2 (RMS) high power output
• Pure Direct Mode for Greater Sound Purity
• Continuous Variable Loudness Control

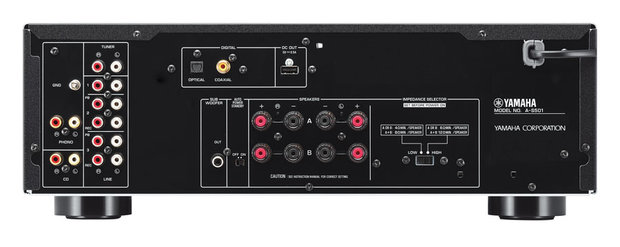

• Gold-plated speaker terminals and RCA (CD, Phono) and coaxial terminals • Digital audio inputs for TV or Blu-ray Player
• Connection for YBA-11 Bluetooth Wireless Adapter

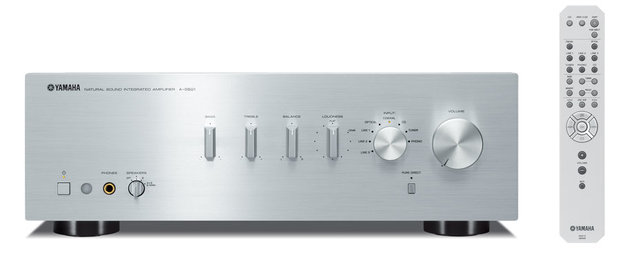

• Simple yet sophisticated design (aluminium front panel and knobs)
• Auto Power Standby
Specifications |
ToP-ART |
Yes |
|
|
|
Receiver / Integrated Amplifier |
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) |
85 W + 85 W (0.019% THD) |
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) |
120 W + 120 W |
Pure Direct |
Yes |
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) |
0.019% (50 W/8 ohms) |
Signal-to-Noise Ratio (CD) |
99dB (input shorted, 200 mV) |
Frequency Response |
10 Hz-100 kHz +/-1.0 dB |
Dimensions (W x H x D) |
435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4” |
Weight |
10.3 kg; 22.7 lbs. |
Audio In / Out |
8 / 2 |
Subwoofer Out |
Yes |
Standby Power Consumption |
0.5W |
Power Management (Auto Power Standby) |
Yes |
Damping Factor |
240 |
High Dynamic Power/Channel (8/6/4/2 ohms) |
130/150/185/220 W |
Digital Input |
Yes (optical / coaxial) |
DC out |
Yes |
