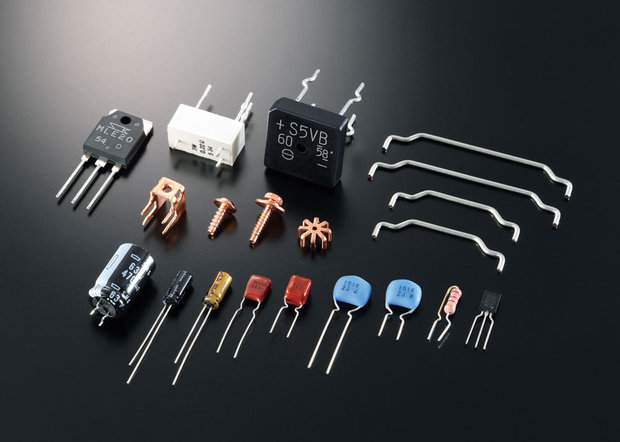

• ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts

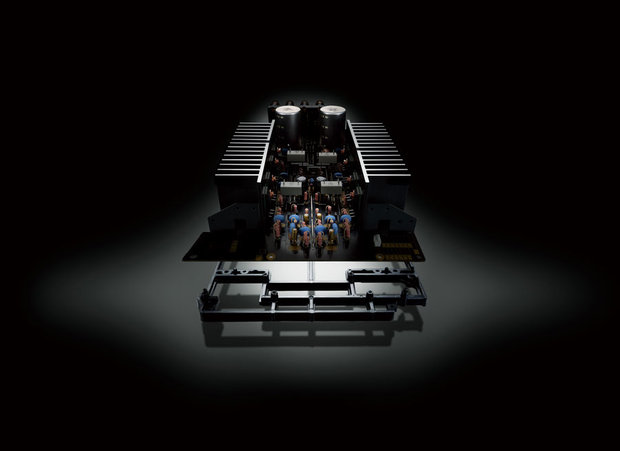

• - I/O (input to output) Direct Symmetrical Design
• - ART (Anti-Resolution and Tough) Base
• - Custom-made power transformer / 12,000uF block capacitors / Aluminum-extruded heat sinks
• 160W x 2 (max), 100W x 2 (RMS) high power output
• CD Direct Amplification and Pure Direct
• Continuous Variable Loudness Control

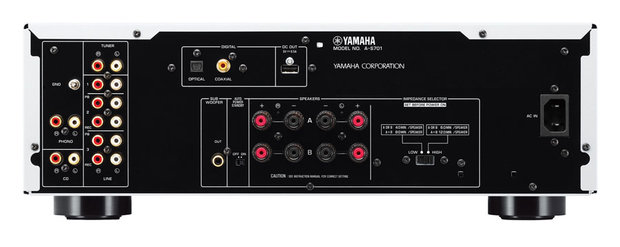

• Gold-plated speaker terminals and RCA terminals
• Digital audio inputs for TV or Blu-ray Player
• Connection for YBA-11 Bluetooth Wireless Adapter

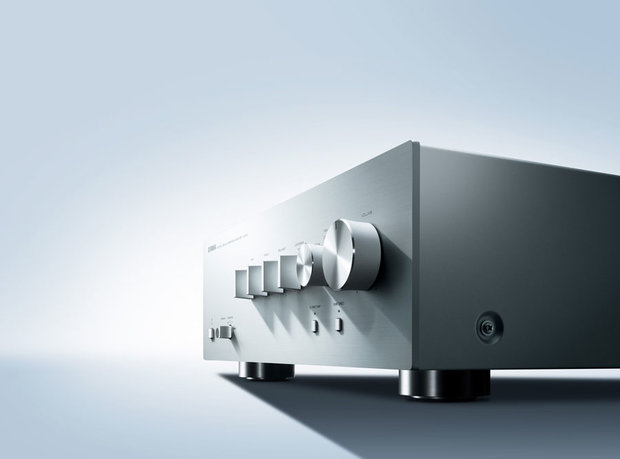

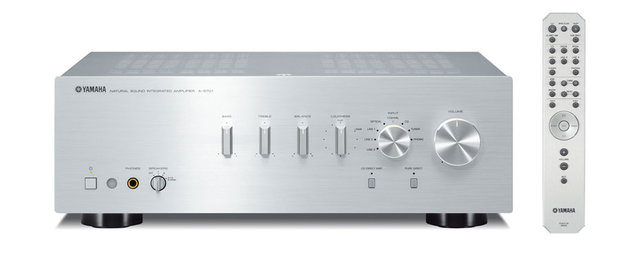

• Simple yet sophisticated design (aluminium front panel and knobs)
• Auto Power Standby
| Specifications |
| ToP-ART |
Yes |
| Switchable CD Direct Amplification |
Yes |
| |
|
|
| Receiver / Integrated Amplifier |
| Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) |
100 W + 100 W (0.019% THD) |
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) |
160 W + 160 W |
| Pure Direct |
Yes |
| Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) |
0.019% (50 W/8 ohms) |
| Signal-to-Noise Ratio (CD) |
99dB (input shorted, 200 mV) |
| Frequency Response |
10 Hz-100 kHz +/-1.0 dB |
| Dimensions (W x H x D) |
435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4” |
| Weight |
11.2 kg; 24.7 lbs. |
| Audio In / Out |
8 / 2 |
| Subwoofer Out |
Yes |
| Standby Power Consumption |
0.5W |
| Power Management (Auto Power Standby) |
Yes |
| Damping Factor |
240 |
| High Dynamic Power/Channel (8/6/4/2 ohms) |
140/170/220/290 W |
| Digital Input |
Yes (optical / coaxial) |
| DC out |
Yes |
